17Gbps High-speed Optical Communication Board

AGM-782

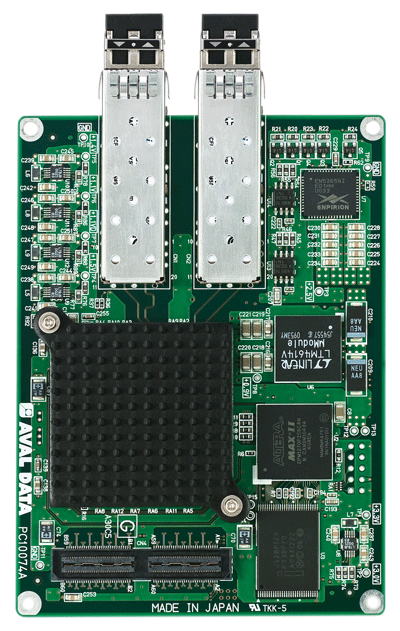

AGM-782 is a card type GiGA CHANNEL module
which enables 17Gbps high-speed serial communication of the data within your equipment .
It can be easily mounted by optical cable connection between AGM-782 and the connection of memory-like interface with equipment.
Since it supports entire protocol processing completely in hardwar which required for communication, no special processing is necessary.

Patent acquisition

The specification and externals of product are for the improvement and might be changed without previous notice

Features

●Up to 64 of optical cable connectivity between boards
●Simple protocol
●Easy data sharing between different OS or different systems

●Up to 17Gbps high-speed data communication
●Supports communication function completely in hardware
●Supports interrupt of arbitrary internode communication

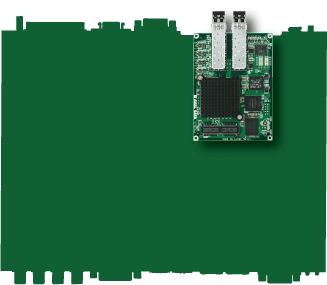

Embed 17Gbps Transfer Function Into Your Equippment

AGM-782 enables easily embed 17Gbps transfer tunction on your original-board

Specification

Model	AGM-782
Host I/F	AVALDATA Original bus(LVDS)
Communication Format	Optical fiber: 8.5Gbps×2ch Transfer rate: 17Gbps Transfer mode: Multi Mode Internodal distance(MAX): 150m *1 Laser format: 850nm VCSEL Laser safety standards: Class 1
Communication Connector＆Cable	Fiber diameter: 50μm Connector format: LC connector
Communication Protocol	Original protocol
Transfer Rate (Theoretical value）	1700MByte/s（MAX） connecting with AGM-782 P to P
Data Transfer Delay	250ns/Node （Receiving → Transmitting ） Except cable delay
Connection Capabilities	64node(MAX)
Communication Controller (with FPGA)	AVAL DATA original protocol
Memory	－
Main Functions	Doorbell function, shared register communication, status LED:ACT/LNK/ERR, recieving filter
Dimensions	115.00mm×85.00mm
Power Requirements	+3.3V:2.0 A(MAX)（except inrush current or ripple current）
Environment *2	Operating temperature: 0℃ to 50℃ Humidity: 35% to 80%(non-condensing)
OS	－

*1: Maximum internodal distance differ according to the optical cable to be used
*2: Storage environment 　
　　 Temperature: -20℃ to 70℃ , Humidity 35% to 80% (non-condensing)

Connectable Products

AGM-782 can be connected with following product.
It can easily share memory between products which in different plat forms or different systems.

PCI Express bus Product : APX-782

Connection List Of GiGA CHANNEL →
