8.5Gbps High-speed Optical Communication Board

AGM-781

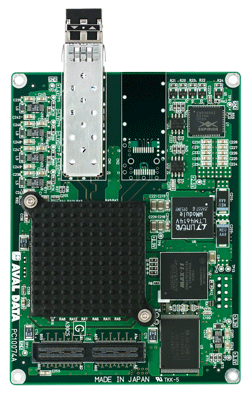

AGM-781 is a card type GiGA CHANNEL module
which enables 8.5Gbps high-speed serial communication of the data within your equipment .
It can be easily mounted by optical cable connection between AGM-781 and the connection of memory-like interface with equipment.
Since it supports entire protocol processing completely in hardwar which required for communication, no special processing is necessary.

Patent acquisition

The specification and externals of product are for the improvement and might be changed without previous notice

Features

●Up to 64 of optical cable connectivity between boards
●Simple protocol
●Easy data sharing between different OS or different systems
●Up to 8.5Gbps high-speed data communication
●Supports communication function completely in hardware
●Supports interrupt of arbitrary internode communication

Embed 8.5Gbps Transfer Function Into Your Equippment

AGM-781 enables easily embed 8.5Gbps transfer tunction on your original-board

Specification

Model	AGM-781
Host I/F	AVALDATA Original bus(LVDS)
Communication Format	Optical fiber: 8.5Gbps×1ch Transfer rate: 8.5Gbps Transfer mode: Multi Mode Internodal distance(MAX): 150m *1 Laser format: 850nm VCSEL Laser safety standards: Class 1
Communication Connector＆Cable	Fiber diameter: 50μm Connector format: LC connector
Communication Protocol	Original protocol
Transfer Rate (Theoretical value）	800MByte/s （MAX） connecting with AGM-781 P to P
Data Transfer Delay	450ns/Node （Receiving → Transmitting ） Except cable delay
Connection Capabilities	64node(MAX)
Communication Controller (with FPGA)	AVAL DATA original protocol
Memory	－
Main Functions	Doorbell function, shared register communication, status LED:ACT/LNK/ERR, recieving filter
Dimensions	115.00mm×85.00mm
Power Requirements	+3.3V:1.7A(MAX)（except inrush current or ripple current）
Environment *2	Operating temperature: 0℃ to 50℃ Humidity: 35% to 80%(non-condensing)
OS	－

*1: Maximum internodal distance differ according to the fiber diameter of optical 　　cable to be used.
*2: Storage environment 　
　　 Temperature: -20℃ to 70℃ , Humidity 35% to 80% (non-condensing)

Connectable Products

AGM-781 can be connected with following product.
It can easily shared memory between products which in different plat forms or different systems.

PCI Express bus Product : APX-781

Connection List Of GiGA CHANNEL →
