Compact Image processing PC

ASI-1300T6¿·¿î5i

ASI-1300T6 is a compact image processing PC which built COM Express platform ASB-1300T6 Series into Box PC. It has industry standard interface, such as CameraLink, Optical, Giga Ethernet, USB for connecting various types of machine vision cameras, and also Low profile size PCI Express expansion slot.

rohsÁ÷¡¦


The specification and externals of product are for the improvement and might be changed without previous notice

Features

¡üSpesialized BOX PC for image processing

¡üPower Over CameraLink(BASE Configuration) SDR connector¡ß2ch

¡üCapable of mounting the Optical fiber connector ¡ß2ch

¡üGPIO Connector for the control of imaging acquisition¡ß1ch

¡üPhoto-Isolation DIO (Input 16ch/Output 16ch),Connector¡ß1ch (MDR-36)

¡ü1000BASE-T LAN¡ß2ch, USB3.0¡ß4ch, MiniDP¡ß1ch, Analog VGA¡ß1ch

¡üOne port PCI Express¡ß16 expansion slot (Supports Low profile)

¡ü Customizable FPGA-based image processing model is available



Specification

Main Function Specification
Device CPU Module
Intel Core i7/i5 Processor(select either one)
(COM ExpressType6 Module)
LAN LAN 1: i210 (Intel)¡¡
LAN 2: COM Express LAN
FPGA Arria II GX (CameraLink, Optical communicaton)
Can be changed by having migration.
CycloneII¡ÊPhoto Isolation DIO¡Ë
Memory 8GB(mounted on CPU Module)
Front Interface Power over CameraLink
Power over CameraLink
SDR 26pin ¡ß2ch
BASE Configuration ¡ß2ch
BASE/MEDIUM/FULL Configuration ¡ß1ch
Optical
¡ß2ch (Distributing or Connecting with Opt-C:Link camera)
LAN RJ45 1000BASE-T/100BASE-TX/10BASE-T ¡ß2ch
USB 3.0 Type A ¡ß4ch
Photo Isolation Digital I/O MDR36pin ¡ß1ch
Display Port (1.2) Mini DisplayPort Connector ¡ß1ch
Analog VGA HD D-Sub 15pin (Socket) ¡ß1ch
GPIO HD D-Sub 15pin (Pin) ¡ß 1ch
On-board Interface COM Express Type6¡ß1ch
PCI Express
(Gen3)
¡ß1ch
SATA­· ¡ß2ch
USB 2.0 Type A ¡ß1ch, BOX HEADER ¡ß2ch
Power ON Switch 2 Pin ¡ß1ch
COM ¡ß2ch
GPIO ¡ß1ch (BOX HEADER 26pin)
FAN ¡ß2ch¡Ê4pin¡Ë
POWER IN ATX 20pin ¡ß1ch, DC12V(4pin) ¡ß1ch
M.2 (Rev.1.0) SATA type ¡ß1ch, PCIe x4 type ¡ß1ch (key M)
Dimension(W¡ßH¡ßD) 250mm ¡ß 98mm ¡ß 255mm(non-projection)
OS Windows7(32 bit / 64 bit)
Environment Compliance Lead free solder, RoHS compMainlaint


Specification of COM Express Module

[ Intel Core i5 Processor Model ]

¡ýIntel Core i5-4400E Processor (Haswell)

2.7GHz, 2 Core /4 Thread

¡ýCache: L3-3MB

¡ýMobile Intel QM87 Express Chipset

¡ýMemory: DDR3L-1600 Unbuffered SO-DIMM ¡ß 2 Standard 8GB¡ÊMax:8GB¡Ë
                     Non-ECC

[ Intel Core i7 Processor Model ]

¡ýIntel Core i7-4700EQ Processor (Haswell)

2.4GHz, 4 Core / 8 Thread

¡ýCache: L3-6MB

¡ýMobile Intel QM87 Express Chipset

¡ýMemory: DDR3L-1600 Unbuffered SO-DIMM ¡ß 2 Standard 8GB¡ÊMax:8GB¡Ë

                     Non-ECC

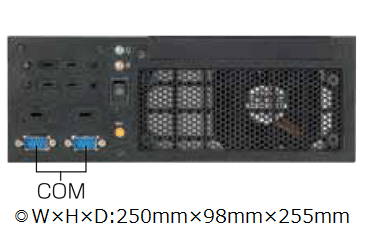

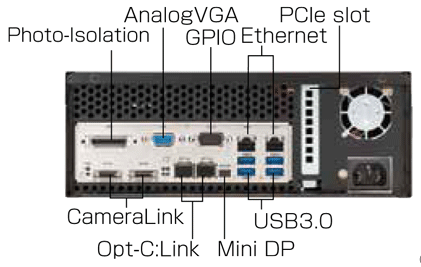

Interface(Front face, Back side)



ASI-1300T6 Product Lineup

ASI-1300T6 Series is provided depending on the difference of mounted camera interface as following¡¡products. You can select optimum configuration for your system construction.

Model ASI-1302T6 ASI-1302optT6 ASI-1323T6
Number of CameraLink (*1) Camera Connections

         ¡¡  2
   ¡¡   ¡ÊBase¡Ë
¡¡¡¡¡¡¡¡¡¡
           ¡¡  2
¡¡¡¡¡¡¡¡¡ÊBase¡Ë
¡¡¡¡
¡¡     ¡¡   1
(Base/Medium/Full¡Ë
Number of Opt-C:Link Camera Connections

¡¡¡¡
    ¡¡¡ß

¡¡¡¡¡¡¡¡¡¡
   ¡¡   2

¡¡¡¡¡¡
  ¡¡ ¡ß

Optical I/F Distribution Function


    ¡¡¡ß

¡¡¡¡¡¡¡¡
    ¡¡ ¡û

¡¡¡¡¡¡

  ¡¡ ¡ß

FPGA Image Processing


¡¡ ¡¡ ¡ß


¡¡¡¡¡¡ ¡ß


¡¡¡¡¡¡¡¡¡¡ ¡ß
CPU
Intel Corei5 or Corei7
Software Development Kit (*2) AZPACAPPLUS-01
or
AZP-ACAP-02
AZP-ACAPPLUS-01 AZP-ACAPPLUS-01
or
AZP-ACAP-02
FPGA Development Kit
           ¡ß

           ¡ß

           ¡ß

Model ASI-1323optT6 ASI-1327T6
Number of CameraLink (*1) Camera
Connections
¡¡¡¡¡¡
¡¡       ¡¡  1
(Base/Medium/Full¡Ë

        ¡¡¡¡  1
(Base/Medium/Full¡Ë
Number of Opt-C:Link Camera Connections

¡¡¡¡¡¡
   ¡¡ 1



¡¡¡¡¡¡¡¡¡¡ ¡ß
Optical I/F Distribution Function


     ¡û


           ¡ß
FPGA Image Processing
¡¡¡¡¡¡¡¡  ¡ß


¡¡ ¡¡ ¡û

CPU
Intel Corei5 or Corei7
Software Development Kit (*2) AZP-ACAPPLUS-01 AZP-ACAP-02
FPGA Development Kit
¡¡¡¡¡¡¡¡¡¡ ¡ß
AZP-FDK-APX3327

*1: CameraLink I/F specification is compatible with following Frame grabbers.      ¡ýASI-1302T6/1302opt --- APX-3302
     ¡ýASI-1323T6/1323opt --- APX-3323
     ¡ýASI-1327T6 --- APX-3327

*2: AZP-ACAP PLUS is a standard software development kit for ASI-1300 series, and
      AZP-ACAP-02 is used for only CameraLink function.

FPGA Image Processing

User can mount original image processing functions on FPGA on ASI-1327T6.
FPGA Development kit is provided.

Configuration Example of Camera Interface


¢£

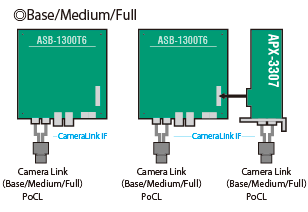

Configuration Example of Camera Link I/F



¢£

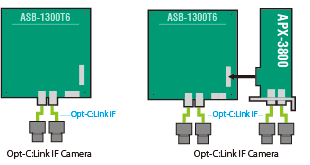

Configuration Example of Opt-C:Link(Optical) I/F



¢£Configuration Example of USB3.0 and LAN I/F

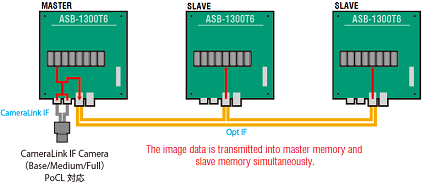

Image Distribution Function of Opt-C:Link(Optical) I/F

ASI-1302optT6 and ASI-1323optT6 can perform distributed processing by connecting with optical cable as shown below using optical I/F.(Picture below is ASB-1300T6 in ASI-1302optT6 or ASI-1323optT6).



Other Document

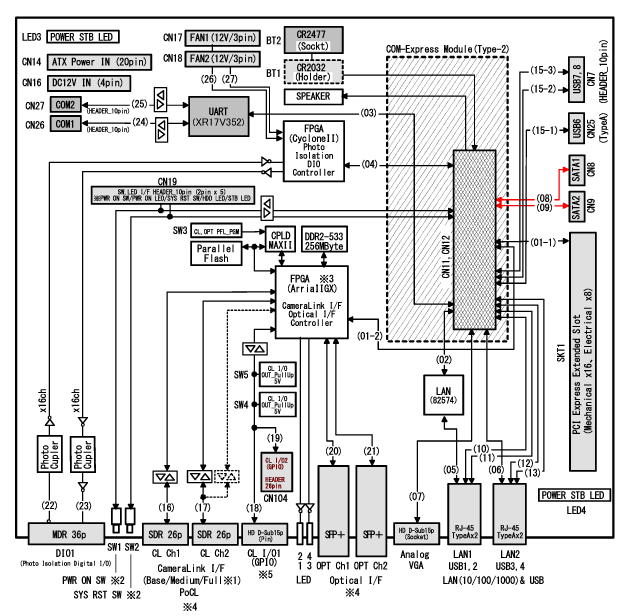

¹àËý  width= Block diagram ¥ê¥ó¥¯
