Optical (Opt-C:Link) I/F
Frame Grabber

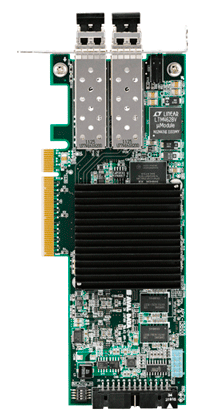

APX-3800
Opt-C:Link is a new interface that connects between the camera and the board through the optical fiber cable. it allows long-distance transmission of the data from high-resolution camera. APX-3800 can communicate at a data rate
of 6.25Gbps¡ß2ch and has the same function as CameraLink.
Capable of connecting over 100meters, offers reduced cabling by using the same optical fiber to
transmit the image data and control signals.
The specification and externals of product are for the improvement and might be changed without previous notice
Features
¡ü6.25Gbps¡ß2ch optical fiber transmission
¡üHigh noise immunity
¡üExtendable over 100meters connectivity
¡üOffers reduced cabling by using the optical fiber to transmit control signal as the image data transmission
¡üSimple packet configuration for equipping to the inexpensive device
Specification
| Model |
APX-3800 |
Camera Interface
|
Opt-C:Link |
Image Acquisition I/F
[Optical I/F] |
Number of Channel |
2ch |
| Transfer Rate |
6.25Gbps |
| Transfer Mode |
Multi Mode |
| Laser Format |
850nm¡¡VCSEL |
| Nodal Distance(MAX) |
150m (
Internodal distance deffer depending on cable
specifications) |
| Laser Safety Standard |
Class 1 |
| Connector Format |
LC Connector |
| Cable Specifications |
Core diameter :
50¦Ìm /62.5¦Ìm¡¡
Cladding diameter : 125¦Ìm
|
| Communication Protocol |
Opt-C:Link Original protocol |
| MEGA-FIFO |
DDR2-SDRAM¡¡256MB |
| Image Processing |
Tap rearrangement, line inversion
|
| I/O |
Compatible with APX-3312: 26pin connector
|
| Interrupt |
Start of image acquisition, end of DMA, GPIN
|
| System bus |
PCI-Express¡ß8¡Ê Gen1¡Ë |
| Power consumption |
¡Ü12V |
| Environment |
Temperature: 0¡î to 50¡î ,
Humidity : -20% to 70%( non condensing) |
| OS |
Windows |
| Software(Option) |
Software development kit : AcapLibPlus |

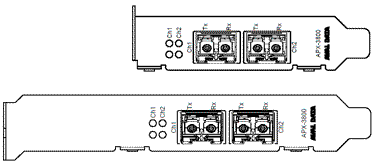

Panel
APX-3800 Low Profile size front panel
and optional standard front panel are prepared.

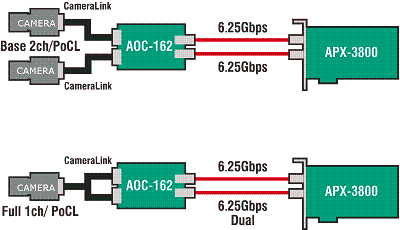

System Configuration Example
Related Products
CameraLink¢ªOpt-C:Link Converter Unit ¡§ AOC-162
Image processing Platform ¡§ ASB-1300
Supported Camera Manufactures
Contact us for the detailed supported camera manufactures
Contact us
Other document

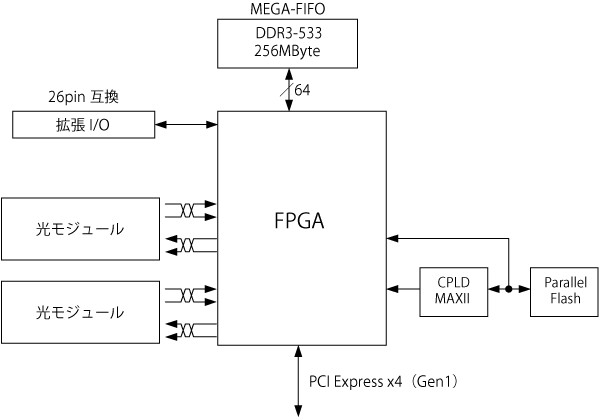

Block Diagram
