Camera Link I/F
Frame grabber board

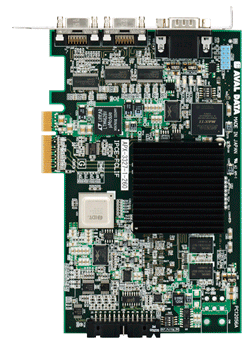

APX-3327
¡¡¡¡
APX-3327 is a PCI-Express CameraLink I/F frame grabber, which enables image acquisition from one Base, Medium or Full Configration CameraLink camera. and it also supports PoCL. The fully-customized FPGA based on APX-3327 hardware enables the creation of an original image processing functions.
¡ýThe specification and externals of product are for the improvement and might be changed without previous notice.
¡ý Power consumption in the specification does not contain the inrush current .
¡ý Power consumption in the specification does not contain the inrush current .
Features
¡üCapable of acquiring images from Base, Medium or Full Configration Camera Link camera
¡üSupports PoCL
¡ü512MB of on board large capacity memory buffer
(Image acquisition : 128MB, Image processing : 384MB)
¡üPCI-Express2.0 ¡ß4
Specification
| Model |
APX-3327-1-260 |
| Image Acquisition I/F |
¡ýCameraLink Base / Medium / Full Configration¡¡1ch
¡ýSDR26 Pin connector : Up to 2 cameras
¡ýSampling clock : 85MHz (MAX)
¡ýPixel format : RGB color : 24bit
Monochrome : 8bit (1 to 10 Tap) /10 to12bit (1 to 4Tap)
¡ýSupports area,line sensor camera |
| PoCL |
Supported |
| Memory |
DDR2-SDRAM¡¡512MB
(MEGA-FIFO:128MB, Work memory:384MB) |
| FPGA |
ALTERA EP2AGX260
(User can develop the image processing circuit on FPGA) |
| Synchronous Output |
Camera control signal : CC1 to CC4
General purpose output : 2ch asynchronous
TTL/Open collector (strobe auxiliary output) |
| Synchronous Input |
External trigger : TTL/Open collector / RS-422 differential signal
Encoder : RS-422 differential signal (line driver), A/B/Z phase, 1MHz(MAX)
General purpose input : TTL/Open collector |
System bus |
PCI Express 2.0 ¡ß 4 (5.0 GT/S) |
| Interrupt |
Start of image acquisition, end of DMA, GPIN |
| Power Consumption |
+12V |
| Environment |
Temperature : 0
¡î to 50¡î
Humidity : 35¡ó to 85¡ó (non-condensing) |
| Dimension |
168mm x 111mm
Panel width : 20mm
(non-projection) |
| OS |
Windows (32bit / 64bit) |
| Software(Option) |
Development kit : SDK-AcapLib2
FPGA development kit :
FDK-APX3327 |
|
