Camera Link I/F
Frame grabber board

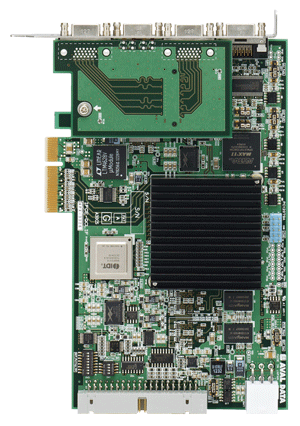

APX-3326A
¡¡¡¡
APX-3326 is a Camera Link I/F frame grabber board with SDR connector which has 512MB of on board memory for the image buffer, the working memory in image processing, and the external I/O interface circuit such as external trigger and encoder. It can connect up to two
Base/ Medium /Full¡¦Deca Configuration
Camera Link cameras.
¡ýThe specification and externals of product are for the improvement and might be changed without previous notice.
¡ý Power consumption in the specification does not contain the inrush current .
¡ý Power consumption in the specification does not contain the inrush current .
Features
¡üCapable of connecting two Base/Medium/Full/Deca Configuration cameras in one slot
¡üSynchronous and asynchronous image acquisition
¡ü512MB of on board large capacity memory buffer
¡üPCI-Express2.0 ¡ß4¡Ê5.0GT/s¡Ë
Specification
| Model |
APX-3326A |
| Image Acquisition I/F |
¡ýCameraLink Base/Medium/Full /Deca Configuration 2ch
¡ýSDR26 Pin connector : 4
¡ýArea, Line sensor Camera
¡ýSampling clock : 85MHz
¡ýPixel format : RGB color :
24bit/30bit
Monochrome : 8 bit (1 to 3Tap) /10 to 12-bit(1 to 4Tap) |
| PoCL |
Supported (non-SafePower compliant) |
| MEGA-FIFO |
DDR2-SDRAM¡¡512MB |
| Image Processing |
Tap rearrangement, line inversion |
| Synchronous Output |
Camera control signal : CC1 to CC4
General purpose output : 8ch
Strobe output : 2ch(TTL/open collector) |
| Synchronous Input |
External trigger : TTL/Open collector / RS-422 differential signal
Encoder : RS-422 differential signal (line driver), A/B/Z phase, 1MHz(MAX)
General purpose input : 2ch(Photocoupler) |
System bus |
PCI Express 2.0 ¡ß 4 (5.0 GT/S) |
| Interrupt |
Start of image acquisition, end of DMA, GPIN |
| Power Consumption |
+12V |
| Environment |
Temperature : 0
¡î to 50¡î
Humidity : 35¡ó to 85¡ó (non-condensing) |
| Dimension |
168mm x 111mm(PCI half size 1slot)
Panel width : 20mm
(non-projection) |
| OS |
Windows |
| Software(Option) |
Development kit : SDK-AcapLib2 |
| Environmental Protection |
RoHS |
|
Front Panel
¢¨This product is equipped with 4ch of SDR connectors on a single slot of PCIe board, therefore some connectors may not be connected depending on the PC model. and, some cable also may not be connected with connectors because of the pitch between connector is tight.
