Camera Link I/F
Frame Grabber
APX-3323¡¡¡¡

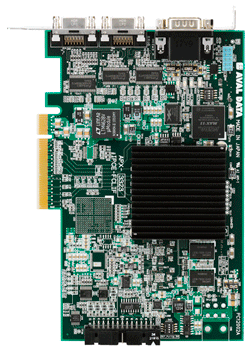

APX-3323 is a PCI-Express Camera Link I/F frame grabber board, which enables image acquisition from one Base, Medium or Full Configration Camera Link camera. It also
supports PoCL and Camera Link Deca(8bit¡ß10tap).
¡ýThe specification and externals of product are for the improvement and might be changed without previous notice.
¡ý Power consumption in the specification does not contain the inrush current .
¡ý Power consumption in the specification does not contain the inrush current .
Features
¡üCapable of acquiring images from Base, Medium or Full Configration Camera Link camera
¡üSupports PoCL
¡ü256MByte of on board large capacity memory buffer
¡üI/O interface(external trigger and encoder) is compatible with
APX-3312
¡üPCI-Express 2.0 ¡ß4
Specification
| Model |
APX-3323 |
APX-3323-1(Built to order) |
| Image Acquisition I/F |
¡ýCameraLink Base / Medium / Full Configration¡¡1ch
¡ýSDR26 Pin connector : 2
¡ýSampling clock : 85MHz (MAX)
¡ýSupports area scan, line scanr cameras |
| PoCL |
Supported |
| MEGA-FIFO |
DDR2-SDRAM¡¡256MB |
| Image Processing |
Tap rearrangement, line inversion |
| Synchronous Output |
Camera control signal : CC1 to CC4
General purpose output : 2ch asynchronous
TTL/Open collector (or strobe auxiliary output) |
| Synchronous Input |
External trigger : TTL/Open collector / RS-422 differential signal
Encoder : RS-422 differential signal (line driver), A/B/Z phase, 1MHz(MAX)
General purpose input : TTL/Open collector |
System bus |
PCI Express 2.0 x4(Gen2)
2.5GT/S
|
PCI Express 2.0 x4(Gen2)
5.0GT/S |
| Power Consumption |
+12V |
| Environment |
Temperature : 0
¡î to 50¡î
Humidity : 35¡ó to 85¡ó (non-condensing) |
| Dimension |
168mm¡ß112mm, Panel width : 20mm
(non-projection) |
| OS |
Windows |
| Software(Option) |
Development kit: SDK-AcapLib2 |
|
