Camera Link I/F
Frame Grabber
APX-3307¡¡¡¡

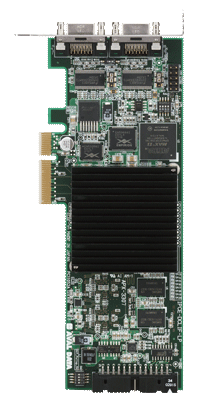

APX-3307 is a LowProfile(half-height), PCI-Express, CameraLink interface frame grabber which enables image acquisition of 3-tap camera or two latest high-speed COMS area camera over
500fps. The fully-customized FPGA based on APX-3307 hardware enables the creation of an original image processing functions. External I/O interface circuit, including an external trigger, encoders is compatible with AVAL DATA¡Çs APX-3312.
¡ýThe specification and externals of product are for the improvement and might be changed without previous notice.
¡ý Power consumption in the specification does not contain the inrush current .
¡ý Power consumption in the specification does not contain the inrush current .
Features
¡üEliminate lost pixels through LowProfile and PCI-Express¡ß4
¡üAcquires sync/asynchronous images from Multi-camera systems by two base Configuration CameraLink interface with triggering and GPIO
¡üOff-load and accelerate image processing to free and assist the CPU using customized ALTERA EP2A X260 FPGA
¡ü256MB of on board large capacity memory buffer
¡üI/O interfaces are compatible with APX-3312
Specification
| Model |
APX-3307-260 |
| Image Acquisition I/F |
¡ýCameraLink Base Configuration¡ß2
¡ýSDR26 Pin connector : Up to 2 cameras
¡ýSampling clock : 85MHz (MAX)
¡ýPixel format : RGB color : 24 bit(RGB 888)
Monochrome : 8 bit(1/2/3Tap) /10/12 bit(1/2Tap) |
| PoCL |
Supported |
| MEGA-FIFO |
DDR2-SDRAM¡¡256MB |
| FPGA |
ALTERA EP2AGX260 |
| Image Processing |
Rearrangement up to 8 taps, line inversion |
| Synchronous Output |
Camera control signal : CC1 to CC4
General purpose output : 2ch asynchronous
TTL/Open collector (or strobe auxiliary output) |
| Synchronous Input |
External trigger : TTL/Open collector / RS-422 differential signal
Encoder : RS-422 differential signal (line driver), A/B/Z phase, 1MHz(MAX)
General purpose input : TTL/Open collector |
System bus |
PCI Express 2.0 x4(Gen2)¡¡2.5 GT/S |
| Interrupt |
Start of image acquisition, end of DMA, GPIN |
| Power Consumption |
+12V |
| Environment |
Temperature : 0
¡î to 50¡î
Humidity : 35¡ó to 85¡ó (non-condensing) |
| Dimension |
LowProfile 120mm(L) x 64mm(H) |
| OS |
Windows |
| Software(Option) |
Development kit: SDK-AcapLib2
FPGA development kit:FDK |
|

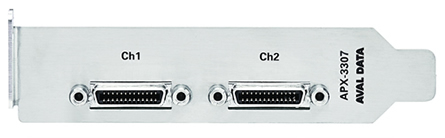

Front Panel
