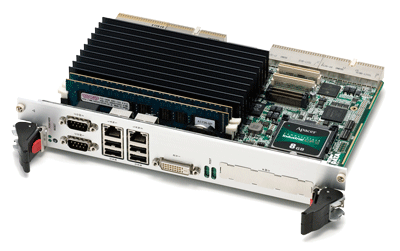

Core i7/ Celeron CPU Module

ACP-134

ACP-134 is a PICMG2.0 (CompactPCI)
standards-compliant, 6U・8HP size CPU module which equipped with IntelR Core i7 processor.
AVAL DATA provides also 6U・8HP size low-cost model equipped with CeleronR.

The specification and externals of the products are for the improvement a previous notice and might be changed.

Features

●CPU:Intel Core i7-620LE(Dual Core/2.0GHz)：ACP-134-I20
　Celeron U3405（1.06GHz）：ACP-134-C10
●Intel QM57 chipset
●PICMG2.0 R3.0 compliant
●6U×8HP（double-height）size
●Equipped with COM×2, DVI-D, LAN×2, USB×4 as the front pannel connector
●Equipped with SATA, CF, PMC as on-board connector
●５V single power supply

Specification

Model

ACP-134-I20

ACP-134-C10

CPU

Core i7-620LE

Celeron U3405

Clock

2.0GHz

1.06GHz

Cache

L1:32KB,L2:256KB,L3:4MB

L1:32KB,L2:256KB,L3:2MB

Chipset

Platform Controller HUB (PCH) QM57

Main Memory

Unpopulated: MAX 8GB（DDR3 SDRAM DIMM socket ×2）

System ROM

SPI Flash

BIOS

AMI BIOS(write into System ROM )

RAS

Device temperature monitoring, power-supply voltage monitoring

Interface

Front Panel	Ethernet	：	1000Base-T /100BASE-TX/10BASE-T ×2ch
	USB	：	USB2.0 ×4ch
	Serial	：	COM ×2ch
	Graphics	：	DVD-D ×1ch
On Board	SATA	：	Host Signal Plug ×1ch
	PMC	：	32bit/33MHz/3.3V × 1ch
	Compact Flash	：	1ch
	J4,J5 (supports only ACP-134-I20. ACP-134-C10 is unpopulated）	：	Keyboard, Mouse, LPT, GPIO, COM ×2, USB ×2, SATA ×2, VGA
	Others (supports only ACP-134-I20. ACP-134-C10 is unpopulated）	：	PCI Express:8 Lane ×1ch (AVAL DATA Original)

System Bus

CompactPCI 32bit/33MHz/5V（supports 3.3V *1）
PICMG2.0 R3.0 compliant
HotSwap: Supports ENUM# signal monitoring, supplies individual clock for each slot(disable control for peripherals)

Power Requirements

+5V:9.8A

+5V:(TBD)A

Environment

Operating temperature: 0℃to 50℃
Humidity: 35% to 85%(non-condensing)

Dimensions

6U×8HP( double-height ）, board size: 233.35 mm×160.0mm

Windows7, VxWorks *（will be supported), Linux

*1: factory-installed option
