A/D Converter Board

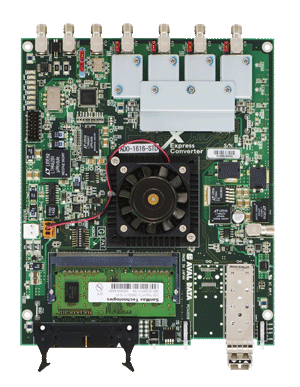

ADO-1616-STD
It is an A/D converter with 4 channels of resolution 160 bits and sampling 160 Msps.
It is a standalone type product that can be used away from the PC that analyzes the sampling part.
The captured analog data is transferred to the analysis PC using high-speed optical communication "GiGA CHANNEL".
On the PC side, high-speed optical communication board APX-761F for data acquisition is mounted.A single APX-761F can acquire data from up to 8 ADO-1616-STD.
The specification and externals of product are for the improvement and might be changed without previous notice
Features
Resolution: 16bit
Up to 160Msps sampling
Sampling Rate: 160MHz to 20MHz
4ch synchronous sampling
High analog function with SNR-71.2dB/SFDR-80.5dB
Equipped with 2GByte（DDR3-SODIMM） on the memory
Enable to mounting user algorithm on the FPGA
Temperture monitoring function
External Clock: 1ch, External trigger: 2ch
Standalone type can be set away from analysis PC
6.25Gbps high-speed data transfer using optical communication GiGA CHANNEL
Data acquisition from up to 8 ADO-1616 by equipping APX-761F on analysis PC
Up to 150m internodal distance between ADO-1616-STD and ADP-761F
Specifications
| Model |
ADO-1616-STD |
| Analog I/F |
Input |
4ch (Connector : SMA) |
| Input Inpedance |
50Ω |
| Coupling |
AC/DC coupling
(Switching Jumper shunt ) |
| Input Range |
AC : 4.6Vp-p (50Ω) 31.8KHz -3dB
DC : ±2.3V (50Ω)
AC : 3.8Vp-p (50Ω) 31.8KHz -3dB
DC : ±1.9V (50Ω) |
| Resolution |
16bit |
| Sampling Rate |
160/128/80/64/40/32/20 MHz |
| Frequency Bandwidth |
80MHz -3dB (LC filter included) |
| Maximum Input Voltage |
±5V |
| Analog Function |
SFDR : -80.5dB@160Msps, Fin10MHz, FS-4dB
SNR : -71.2dB@160Msps, Fin10MHz, FS-4dB
ENOB : 11.3bit@160Msps, Fin10MHz, FS-4dB
CROSSTALK : -80dB @160Msps, Fin10MHz, FS-4dB
|
| External Clock Input |
Number of Channel : 1
Signal Level : 0.6Vp-p to 3.5Vp-p
(Sine wave/ Square wave)
Frequency : 100MHz to 10MHz
Input Inpedance : 50Ω (AC Coupling)
Connector format : SMA
|
| External Trigger Input |
Number of channe : 2
Signal level : LVTTL (5V tolerant)
Input circuit : Power protection
Input inpedance : 1KΩ/50Ω
Connector format : SMA
|
| General-Purpose Port : DIO |
Number of channe : 20 +GND
Signal level : LVTTL
Input circuit : Power protection
Connector format : HIF3BA-30PA-2.54DS(71)
|
| FPGA |
Kintex-7 |
Optical I/F
(For transfer)
|
Protcol |
GiGA CHANNEL(AVALDATA Original) |
| Transfer Rate |
6.25Gbps※1 |
| Communication Format |
Optical fiber : 6.25Gbpsx1ch
Transfer mode : Multi Mode, Internodal distance(MAX) : 150m(*1)
Laser format : 850nm VCSEL, Laser safty standard : Class 1 |
| Communication Connector ＆Cable |
Fiber diameter : 50μm ,Connector format : LC connector |
| FIFO Memory |
2GByte(Max 512MB per channel) |
| Connectable Nodes |
8 Node(MAX) |
| Power Requirements |
+12V (±8%), 2A |
| Dimension |
170mmx140mmx1.6mm[t] |
| Environment |
Temperature : 0 to 50℃,
Humidity : 35 to 85% (non-condensing) |
| Environmental Compliance |
RoHS |
(*1):The maximum theoretical distance between nodes depends on the cable characteristics.
